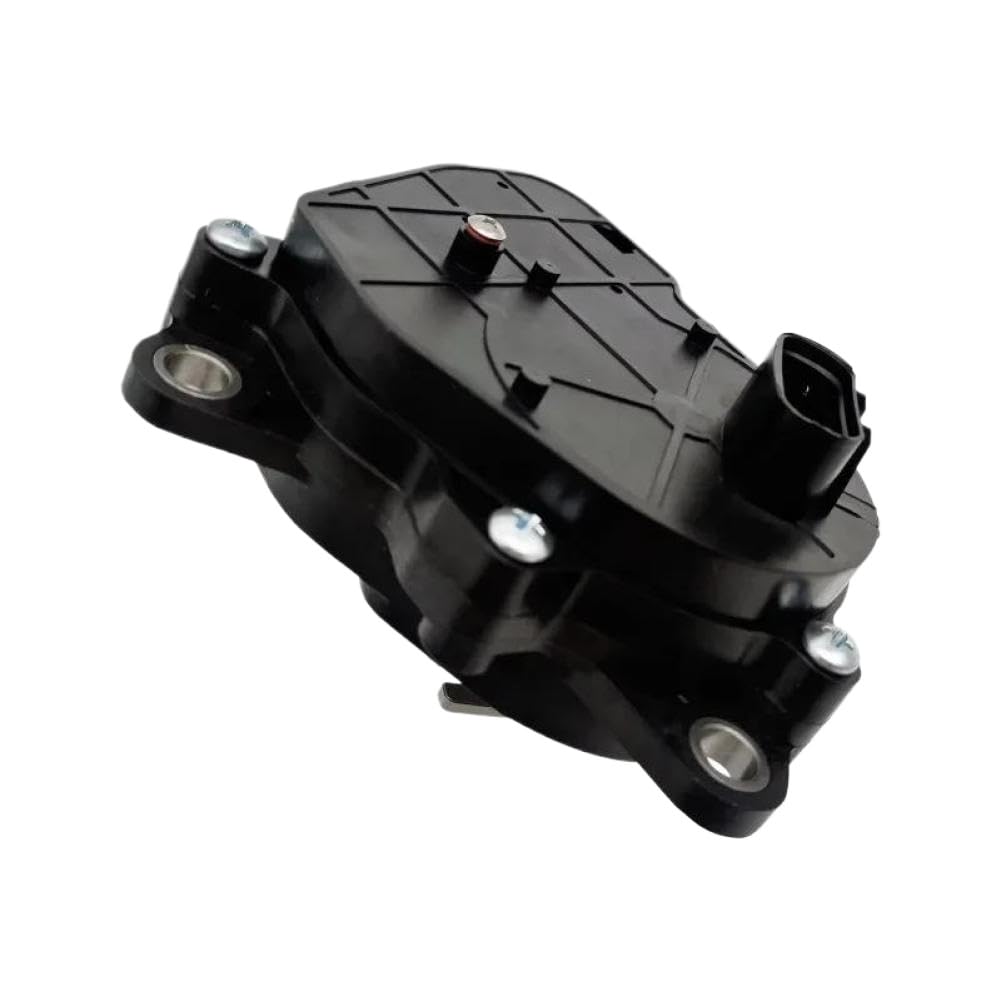

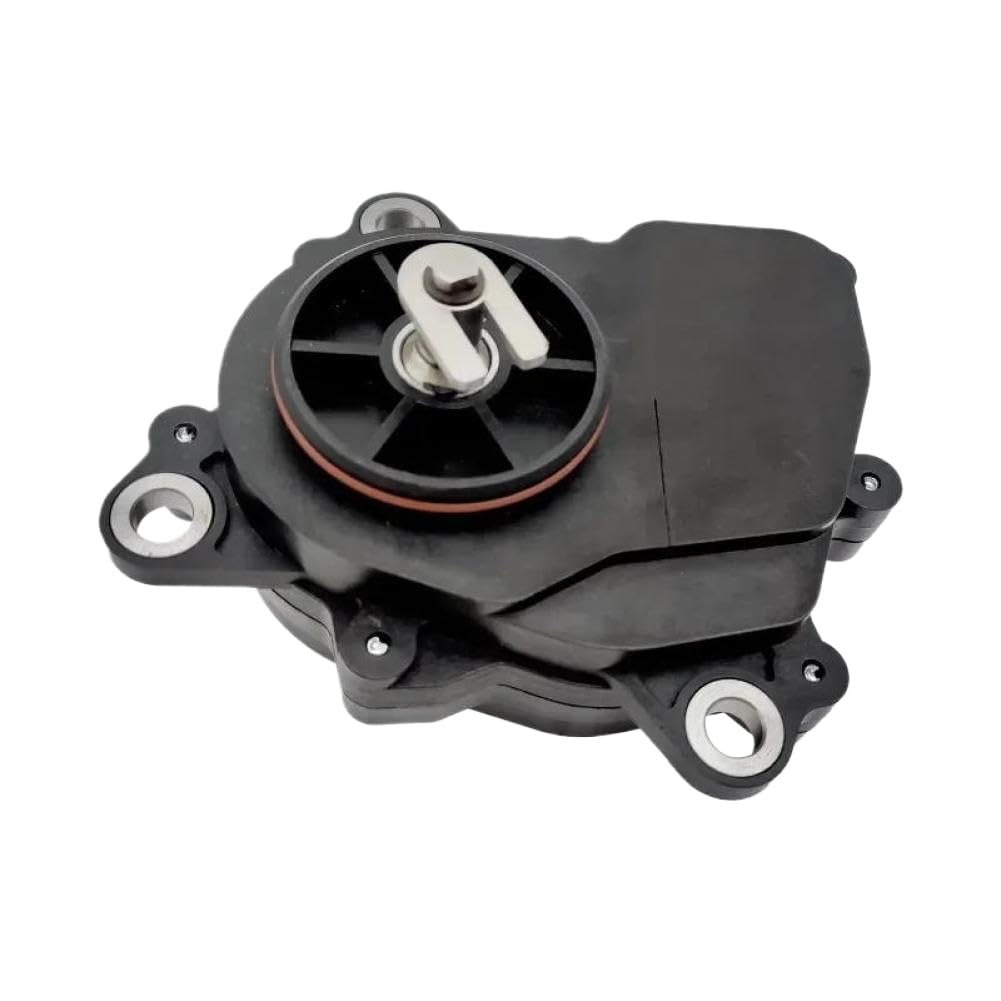

Transmission Actuator Motor Replacement for Models 500, 650, 800, and 1000

This transmission actuator motor replaces part numbers 415129174 and 715900614.It is designed for use with models equipped with 500, 650, 800, and 1000 engine displacements.Compatible with applicable models from model years 2006 through 2019, including the following configurations: 2006–2007: 500, 650, and 800 4x4 models with Gear Box 1 or Gear Box Assy and 4x4 Actuator 2008–2011: 500, 650, 800, and 800R EFI models with Gear Box Assy and 4x4 Actuator or Gear Box 1 (Types 684784, 684786, 684788, 684789) 2012–2015: 500, 650, 800R, and 1000 EFI models including STD, LTD, X, XXC, XMR, DPS, XRS, XTP, Turbo, and 6x6 variants; compatible with T3 Package and non-T3 Package configurations where applicable 2016–2019: 570, 650, 850, 1000, and 1000R EFI models including HD5, HD8, HD10, MAX, X3, Trail, and PRO Package variants; compatible with Gbps, XMR, XRC, XRS-DPS, XDS-DPS, and Turbo configurations This actuator motor restores 4x4 engagement functionality and is a direct-fit replacement for the transmission actuator assembly in the specified models and model years.No vehicle modifications are required for installation.

• Model Compatibility: Designed for use with models 500, 650, 800, and 1000.
• Part Number Match: Replaces units with part numbers 415129174 and 715900614.
• Functional Purpose: Direct replacement transmission actuator motor for specified models.
• Specification Alignment: Matches electrical and mechanical interface requirements for listed models.
• Installation Scope: Restores transmission actuator motor function when installed in compatible systems.
